Setting up the Python project for event functions

The following examples assumes that you have Python 3.10 installed, you are using pip as the package manager, and Linux.

Creating a Python project

Project structure

A minimal Python FunctionGraph project is typically structured as follows:

Project structure

/project-root
 ├─ src
 |  └─ index.py
 ├─ requirements.txt
 └─ Makefile

Sample code

src/index.py

# -*- coding:utf-8 -*-
import json

def initializer(context):
    logger = context.getLogger()
    logger.info(f"Function name: {context.getFunctionName()}")


def handler (event, context):
    logger = context.getLogger()
    logger.info(f"Function name: {context.getFunctionName()}")
    return {
        "statusCode": 200,
        "isBase64Encoded": False,
        "body": json.dumps(event),
        "headers": {
            "Content-Type": "application/json"
        }
    }

requirements.txt

The requirements.txt file is used to manage the dependencies of a Python project. The following is a sample requirements.txt file:

requirements.txt

requests==2.26.0

Makefile

The Makefile is used to automate the build and deployment process of a Python project. The following is a sample Makefile:

Makefile

.PHONY: create_package
create_package:
        python3 ../../utils/createZip.py

(Adapt the above Makefile to your project structure and requirements.)

Deploying to FunctionGraph

Create Zip

To upload the function code to FunctionGraph, you need to create package of the project.

The directory structure of the zip package should be as follows:

Zip package structure

/code.zip
 ├─ dependency_1           Python third-party dependencies (optional)
 |  └─ ...
 ├─ dependency_2           Python third-party dependencies (optional)
 |  └─ ...
 ├─ src
 |  └─ index.py            .py handler file (mandatory)
 └─ requirements.txt       Python project management file (mandatory)

You can use the following make target to create the package, which will include the dependencies listed in the requirements.txt file:

make create_package

Create FunctionGraph function in console

1. Log in to the FunctionGraph console.

2. Click Create Function and select Create from scratch.

3. In Basic Information:

   • “FunctionType”: Event Function.

   • “Region”: select the region where you want to create the function.

   • “Function Name**: enter a python_sample as name for the function.

   • “Enterprise Project**: select default.

   • “Runtime**: select the Python runtime version Python 3.10.

   • “Agency”: select Use no agency

4. Click Create Function.

5. Upload the created code.zip file to the function by clicking Upload > Local ZIP.

   The uploaded code will be automatically deployed on the FunctionGraph console. If you have modified the code, click Deploy again.

6. Modify the function handler:

   1. Click Configuration > Basic Settings.

   2. In the Handler field, enter the handler src/index.handler.

   3. Click Save.

7. Modify the initializer (if needed):

   1. Click Configuration > Lifecycle.

   2. enable Initialization

   3. In the Function Initializer field, enter the initializer src/index.initializer.

   4. Click Save.

Testing the function

1. On the Code tab, click Test. In the Configure Test Event dialog box, create from Blank Template and set as:

   {
      "key": "value"
   }


2. Click Create to save the test event.

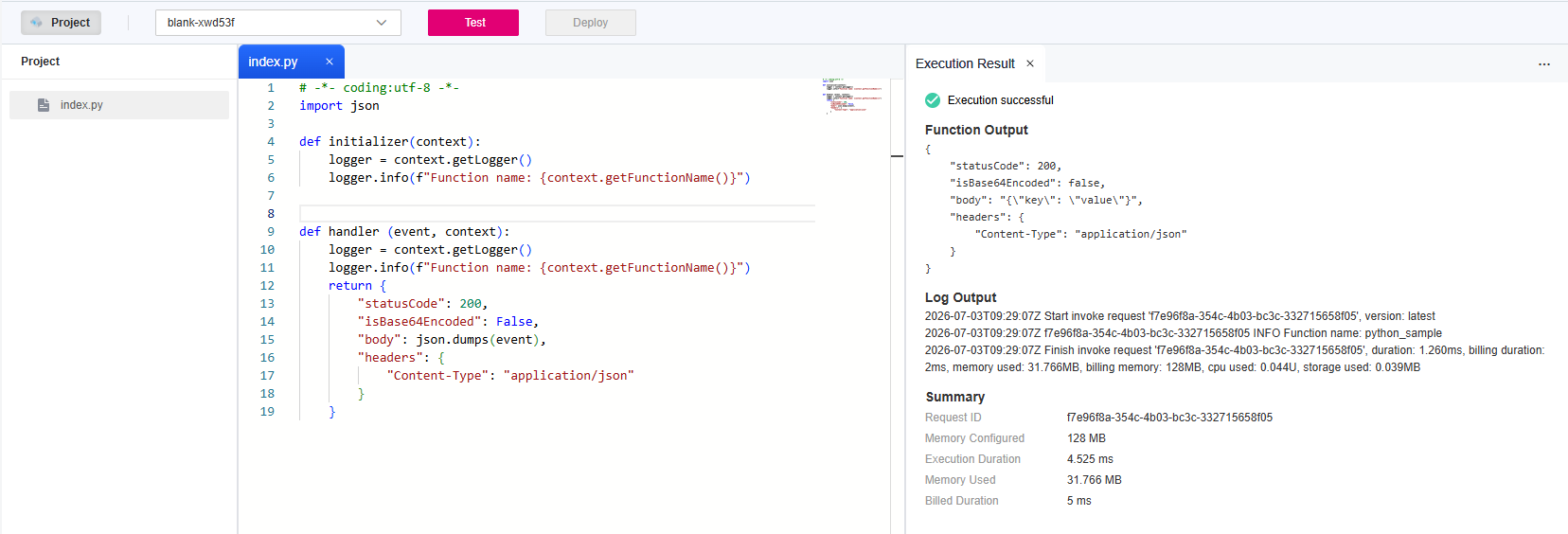

3. Click Test to test the function.

4. the Execution Result window is displayed on the right. You can check whether the function is executed successfully.



Function Execution Result Description

The execution result consists of the function output, summary, and log output.

Function execution result description

Parameter	Successful Execution	Failed Execution
Function output	The defined function output information is returned.	A JSON file that contains errorMessage and errorType is returned. The format is as follows: { "errorMessage": "error message", "errorType": "error type" } errorMessage: Error message returned by the runtime. errorType: Error type.
Summary	Request ID, Memory Configured, Execution Duration, Memory Used, and Billed Duration are displayed.	Request ID, Memory Configured, Execution Duration, Memory Used, and Billed Duration are displayed.
Log output	Function logs are printed. A maximum of 4 KB logs can be displayed.	Error information is printed. A maximum of 4 KB logs can be displayed.
